To remove the Jeep Wrangler dashboard, first disconnect the battery and then remove screws and bolts securing the dashboard. Carefully detach electrical connectors and pull the dashboard out.

Removing the Jeep Wrangler dashboard may seem daunting, but it’s manageable with the right tools and steps. This process involves disconnecting the battery to ensure safety and then removing various screws and bolts. Pay close attention to the locations of these fasteners to make reassembly easier.

Detach the electrical connectors carefully to avoid damaging any wiring. Having a proper guide and taking your time can make the process smoother. This guide will help you with the necessary steps and precautions to effectively remove the dashboard without any hassle.

Introduction To Jeep Wrangler Dashboard Removal

Removing a Jeep Wrangler dashboard can seem daunting. But with the right tools, it’s manageable. This guide will help you through the process. You can do it at home with basic knowledge.

The Need For Dashboard Removal

There are several reasons to remove the dashboard. You may need to access the wiring or replace the stereo. Sometimes, you might need to fix or replace heating and cooling parts. Removing the dashboard can also help with upgrading the interior.

Tools Required For The Job

Having the right tools makes the job easier. Here’s a list of tools you will need:

• Phillips head screwdriver
• Flathead screwdriver
• Socket wrench set
• Trim removal tool
• Torx bit set
• Plastic pry tools

Ensure you have all these tools before starting. It saves time and effort. Each tool has its specific use in the process.

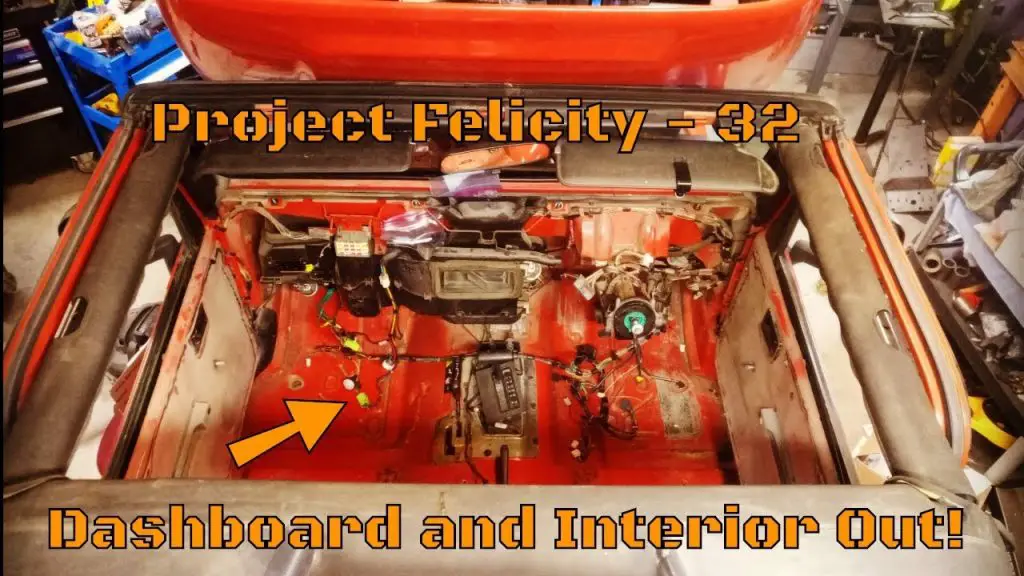

Credit: m.youtube.com

Preparatory Steps

Before removing your Jeep Wrangler dashboard, take some preparatory steps. These steps ensure safety and ease of the process. Follow them carefully to avoid damage or injury.

Disconnecting The Battery

First, disconnect the battery to prevent electrical shocks. Use a wrench to loosen the negative terminal. Remove the cable from the battery and set it aside. This step is crucial for your safety.

Here’s a simple table to guide you:

Step	Action
1	Locate the battery
2	Use a wrench to loosen the negative terminal
3	Remove the cable and set aside

Removing Dashboard Accessories

Next, remove all dashboard accessories. These include the radio, air vents, and other components. Use a screwdriver to unscrew the accessories. Place them safely aside.

• Radio
• Air Vents
• Climate Controls

Label each part to remember their positions. This makes reassembly easier.

Follow these steps:

1. Identify the accessories to be removed.
2. Unscrew each component using the right tool.
3. Keep screws and parts in a safe place.

These steps ensure a smooth process. Be patient and careful.

Dashboard Disassembly

Removing the dashboard of a Jeep Wrangler might seem challenging. With the right steps, it becomes manageable. Follow this guide for a smooth disassembly process.

Taking Off The Trim Panels

The first step is to remove the trim panels. These panels cover screws and clips holding the dashboard. Use a trim removal tool to pry off the panels. Start from one corner and work around. Be gentle to avoid breaking any clips. Keep all removed parts in a safe place.

Check for hidden screws behind the panels. Use a flashlight if needed. Remove these screws using a screwdriver. Double-check that all screws are removed before moving to the next step.

Unscrewing The Dashboard

With the trim panels off, focus on the main dashboard screws. Use a socket wrench to unscrew them. There are usually several screws holding the dashboard. Consult the Jeep Wrangler manual for exact locations.

Make sure to keep the screws organized. You can use a small container or a magnetic tray. This prevents losing any screws during reassembly. Label each screw if they vary in size or type.

After all screws are removed, gently pull the dashboard. Check for any remaining clips or wires. Disconnect any wiring harnesses carefully. The dashboard should come off easily once everything is detached.

Credit: www.wranglerforum.com

Handling Electrical Components

Removing the Jeep Wrangler dashboard involves dealing with many electrical parts. This guide will help you handle these components safely. Follow these steps carefully to avoid any damage.

Detaching Wiring Harnesses

Wiring harnesses connect various electrical components in your Jeep. Begin by disconnecting the battery to avoid any shocks.

• Locate the harnesses behind the dashboard.
• Use a screwdriver to carefully remove the screws holding them.
• Gently pull the harnesses to disconnect them from the sockets.

Ensure you label each wire. This helps when reconnecting them later. Keep a diagram or take pictures to remember the connections.

Managing The Instrument Cluster

The instrument cluster includes gauges and indicators. Handle it with care to avoid damaging the sensors.

1. Remove the screws securing the cluster in place.
2. Carefully pull the cluster out from the dashboard.
3. Disconnect the wires attached to the back of the cluster.

Place the cluster in a safe, static-free area. Avoid touching the gauges directly. They are sensitive and can easily break.

Removing The Dashboard

Removing the dashboard of a Jeep Wrangler is a detailed task. This guide will help you remove the dashboard step by step.

Lifting The Dashboard Out

First, ensure all connections are disconnected. This includes wires and screws.

• Disconnect the battery to avoid any electrical issues.
• Remove screws around the dashboard area.
• Gently lift the dashboard using both hands.

Use a helper if the dashboard feels heavy. Carefully place it on a flat surface.

Navigating Common Obstacles

Some obstacles may arise during the removal process. Here are some tips to handle them:

Obstacle	Solution
Stuck screws	Use a proper screwdriver or WD-40.
Wiring issues	Label wires before disconnecting them.
Heavy dashboard	Have a friend assist you with lifting.

Ensure each step is followed carefully. It helps avoid any damage to the Jeep.

Post-removal Checks

After successfully removing the Jeep Wrangler dashboard, it’s essential to perform some post-removal checks. These checks ensure that everything is in proper condition and ready for the next steps. Follow these guidelines to maintain a clean and functional workspace.

Inspecting For Damage

Start by inspecting the removed dashboard for any signs of damage. Look for cracks, broken clips, or worn-out areas. Use a flashlight to check hidden spots.

• Check for cracks on the dashboard surface.
• Look for broken clips or attachments.
• Inspect the wiring for any cuts or frays.
• Ensure mounting points are intact and not worn out.

If you find any damage, consider repairing or replacing the affected parts. This ensures your dashboard remains sturdy and functional.

Cleaning The Work Area

A clean work area is crucial for reassembly. Start by removing any dust or debris that may have accumulated during the removal process.

Cleaning Task	Tools Required
Wipe surfaces	Microfiber cloth
Remove dust	Vacuum cleaner
Clean small parts	Soft brush
Dispose of waste	Garbage bag

Follow these steps to ensure a tidy workspace:

1. Use a microfiber cloth to wipe down all surfaces.
2. Use a vacuum cleaner to remove any dust.
3. Use a soft brush to clean small parts.
4. Dispose of any waste in a garbage bag.

A clean area helps prevent any issues during reinstallation. It also keeps everything organized and easy to access.

Reassembly Tips

Reassembling your Jeep Wrangler dashboard after removal can be challenging. Follow these tips to ensure a smooth process. Proper reassembly ensures your dashboard functions correctly and looks great.

Reconnecting Electrical Components

Start by reconnecting all electrical components. Label each wire during disassembly to make this step easier. Ensure each wire is connected to the correct terminal.

• Check each connector for damage.
• Match wire colors to their respective sockets.
• Use a multimeter to test connections.
• Secure connections with electrical tape if needed.

Be gentle with connectors to avoid breaking them. Double-check each connection before moving on.

Reinstalling The Dashboard

Next, reinstall the dashboard. Align it carefully to avoid damaging any parts. Use the same screws and bolts you removed earlier.

1. Position the dashboard in place.
2. Insert and tighten screws evenly.
3. Check alignment frequently.
4. Secure all brackets and mounts.

Ensure the dashboard sits flush and secure. Inspect for any gaps or misalignments. Finally, test all functions to confirm a successful reassembly.

Credit: www.wranglerforum.com

Maintenance And Care

Proper maintenance keeps your Jeep Wrangler dashboard in top shape. Regular care prolongs its life and ensures safety. Learn how to maintain and troubleshoot your dashboard effectively.

Routine Upkeep For Longevity

Routine upkeep is crucial for your Jeep Wrangler dashboard’s longevity. Follow these steps to keep it in excellent condition:

• Dust regularly using a soft cloth.
• Clean with mild soap and water solution.
• Avoid harsh chemicals that can damage the surface.
• Check for loose connections to ensure everything is secure.

These simple steps help prevent wear and tear, ensuring your dashboard lasts longer.

Troubleshooting Common Issues

Encountering issues with your Jeep Wrangler dashboard? Here are common problems and solutions:

Issue	Solution
Dashboard lights not working	Check the fuses and replace if necessary.
Loose dashboard parts	Tighten screws and fasteners.
Cracks or scratches	Use a dashboard repair kit.

Regular checks and quick fixes keep your dashboard functional and looking new.

Conclusion

Removing your Jeep Wrangler dashboard can be a straightforward task with the right tools and steps. Follow the guide carefully to avoid any issues. Always prioritize safety by disconnecting the battery first. With patience and attention to detail, your dashboard removal will be successful.

Enjoy customizing or repairing your Jeep Wrangler!
